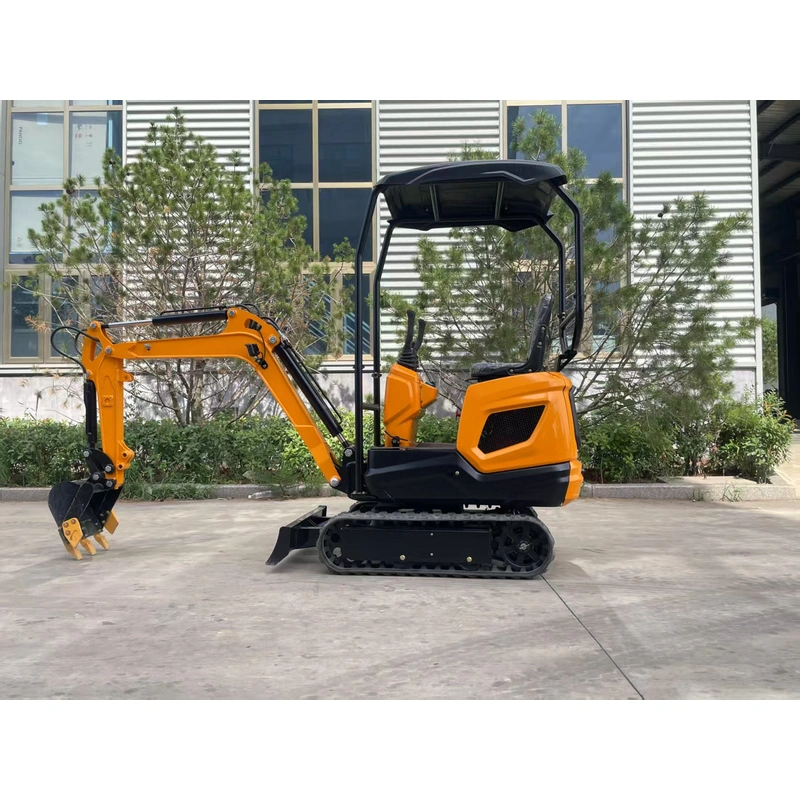

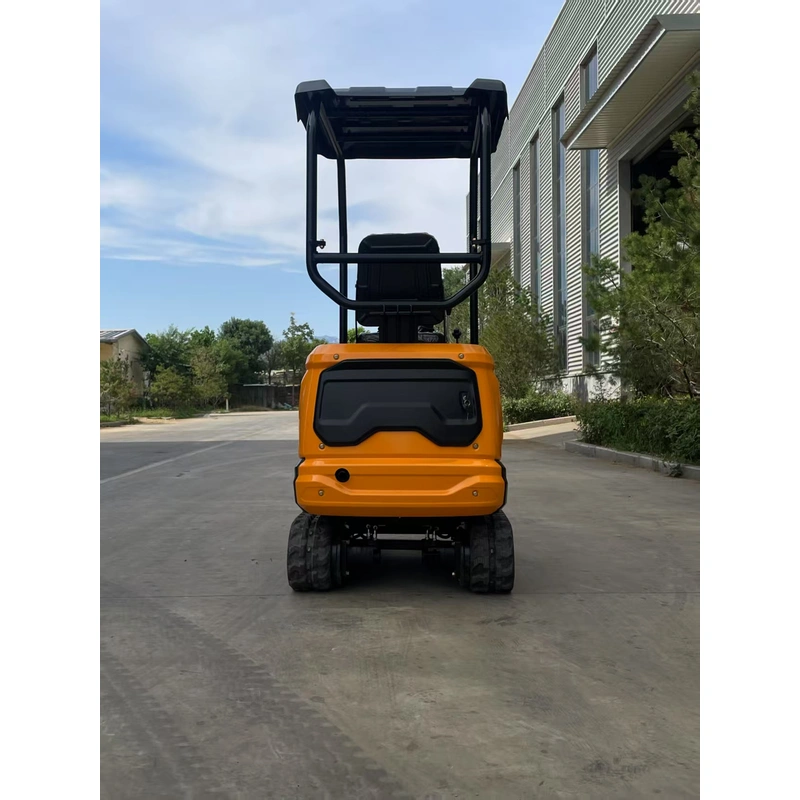

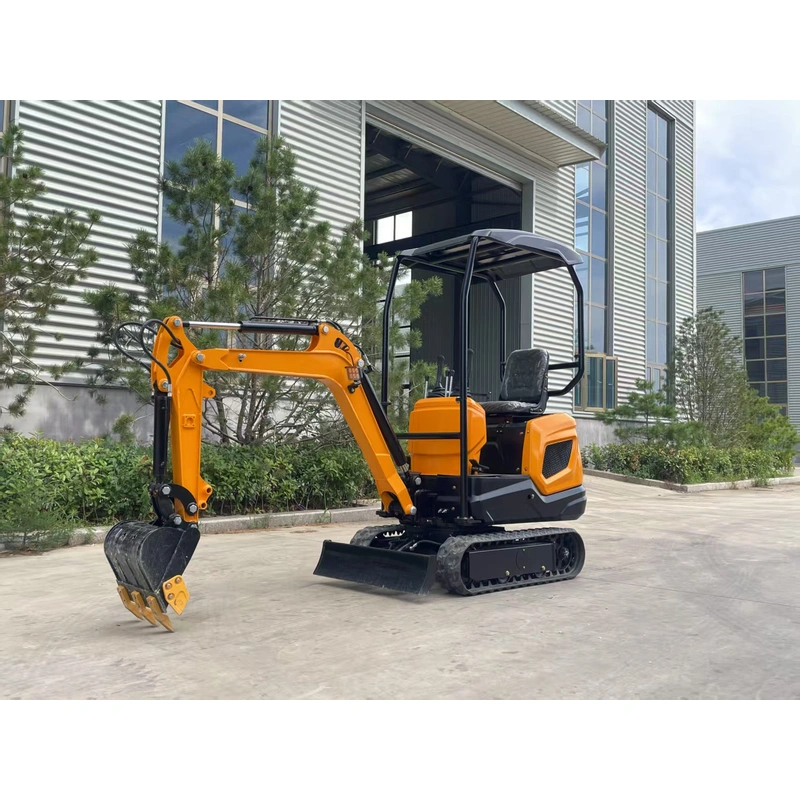

| YT12 Excavator | |||
| Weight | 1100kg/2420lbs | Engine | Koop/Briggs |
| Power | 10HP/13.5HP | Track width | 180mm/7inch |
| Control | Pilot | Bucket capacity | 0.025cbm |
| Ground length | 1000mm/40inch | Machine width | 830mm/33inch |
| Maximum digging depth | 1650mm/65inch | Maximum digging height | 2500mm/98inch |
| Maximum digging radius | 3050mm/120inch | Maximum dumping height | 1695mm/67inch |
| Configuration | |||
| Pilot Control | Hydraulic Oil Cooler | Load Sensing System | Hydraulic Thumb |
| 3 Way Valves | Cylinder Guards | Hidden console | Cooling Fan |
