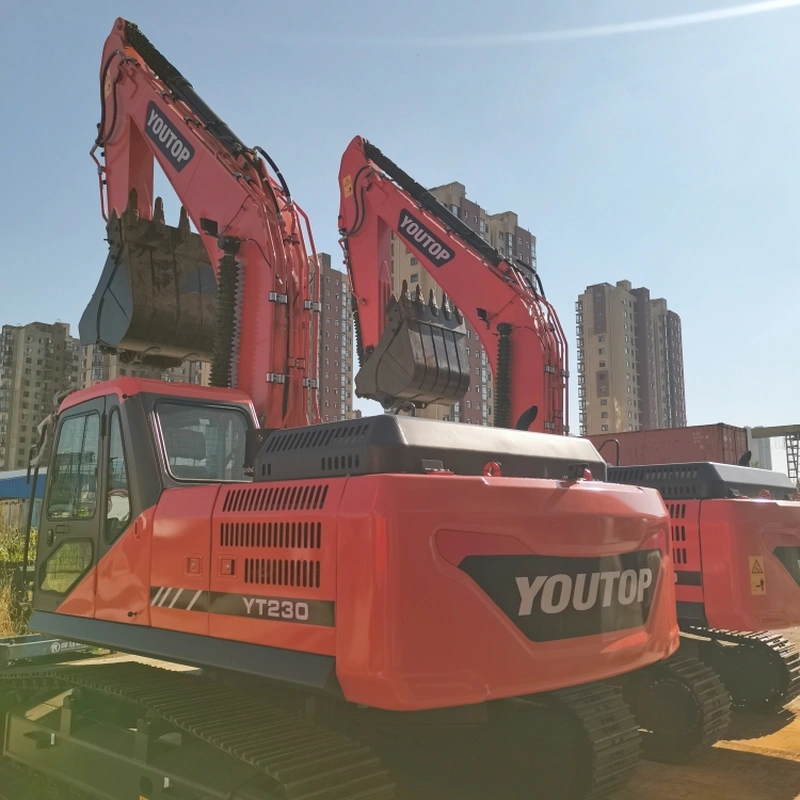

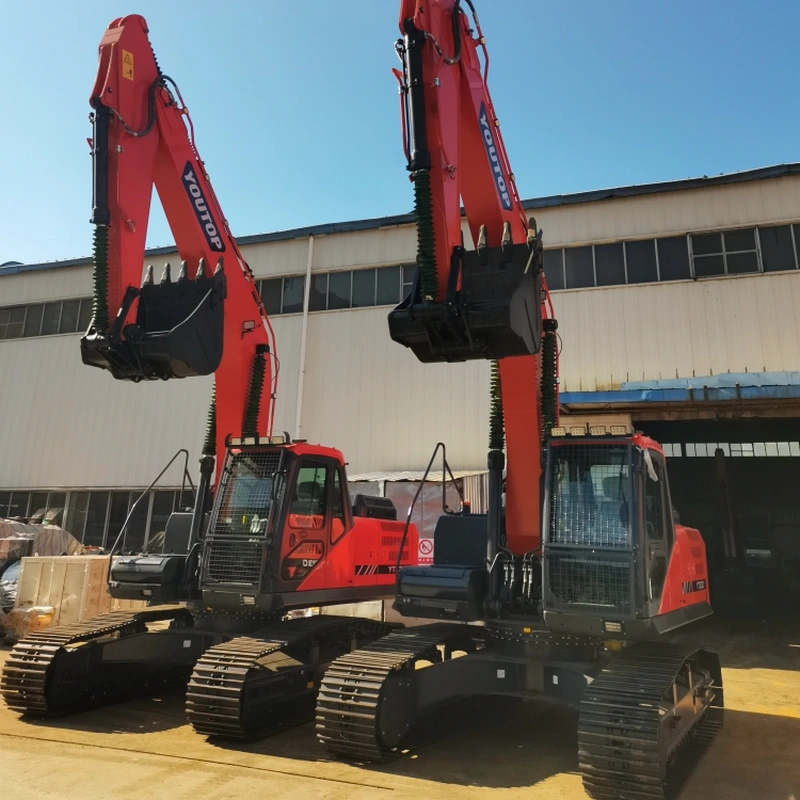

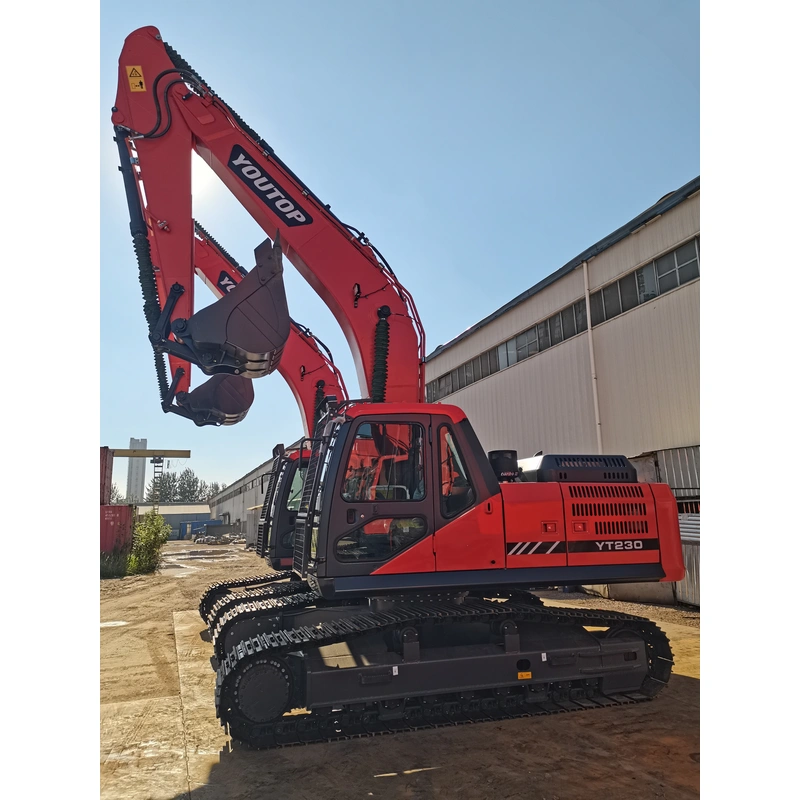

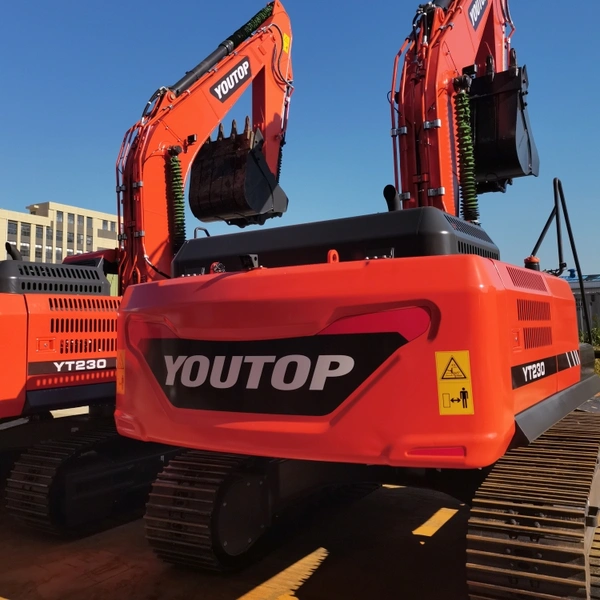

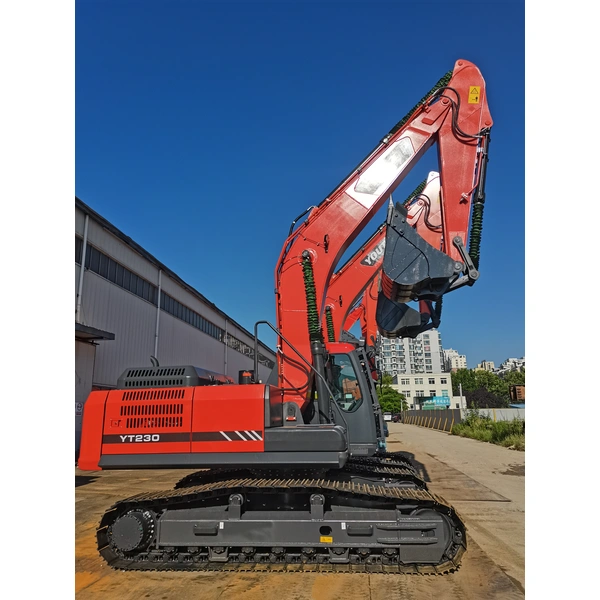

| YT230 Excavator | |||||
| Main Specifications | Technical Parameter | ||||
| Engine | Model | isuzu4hk1 | Boom length | mm | 5700 |
| Rated Power | 133KW(180HP)/2,000rpm | Stick length | mm | 2900 | |
| Number of Cylinders | 4 | Max.digging reach | mm | 9873 | |
| Emission Standards | Max. digging reach at ground | mm | 9699 | ||
| Type | Turbocharge/Water cooling/Electronic fuel injection | Max. digging depth | mm | 6592 | |
| main Pump | Type | Variable displacement axial piston pump | Max.loading height | mm | 6830 |
| Maximum Flow | 2x212L/min | Min.loading height | mm | 2501 | |
| Quatity | 2 | Max.digging height | mm | 9616 | |
| Pilot Pump | Type | Gear Pump | Max.height of bucket pin | mm | 8274 |
| Maximum Flow | 30L/min | Max.vertical digging depth | mm | 3929 | |
| Relif Valve | Work device circuit | 34.3Mpa | Max.vertical radius | mm | 7988 |
| Walking hydraulic circuit | 34.3Mpa | Min.digging reach | mm | 562 | |
| Swing hydraulic circuit | 26.5Mpa | Min.turning radius | mm | 3560 | |
| Speed | Swing Speed | 10.5rpm | Bucket digging force | KN | 149 |
| Walking Speed | 5.7/3.1km/h | Stick digging force | KN | 105 | |
| Fuel Tank Capacity | Fuel Tank |  400L | |||
| Hydraulic tank | 195L | ||||
| Dimensions | |||||
| Transport height (to the top of boom) | mm | 2950 | |||
| Transport height (to the top of pipe) | mm | 3065 | |||
| Transport length | mm | 9506 | |||
| Transport width | mm | 3000 | |||
| Tail Turning Radius | mm | 2794 | |||
| Counterweight ground clearance | mm | 1096 | |||
| Total height (to the top of cab) | mm | 2985 | |||
| Width of rotary table | mm | 2870 | |||
| Height of Cab (above table) | mm | 832 | |||
| Width of Cab | mm | 1008 | |||
| Center distance between guide wheel and driving wheel | mm | 3650 | |||
| Track length | mm | 4440 | |||
| Width | mm | 3000 | |||
| Track width | mm | 600 | |||
| Track height | mm | 950 | |||
| Min.ground clearance | mm | 475 | |||
