| YTWZ50-36型挖掘装载机技术参数 | |||
| 挖掘部分Excavation section | 单位 | ||
| 挖掘斗容量 Bucket capacity | m³ | 0.16-0.2 | |
| 最大挖掘深度 Maximum depth of excavation | mm | 3500/m | |
| 最大挖掘高度Maximum excavation height | mm | 4200-4500/m | |
| 动臂回转角度Slewing angle of boom | ° | 170° | |
| 崛起力 Rising power | kn | 38.4kn | |
| 铲斗挖掘力Bucket digging power | kn | 36.9kn | |
| 挖掘部分带左右横移Lateral movement of excavation zone | |||
| 装载部分Loading section | 单位 | ||
| 装载斗容量Loading capacity | m³ | ≤1.1 | |
| 最大举升高度Maximum lift | mm | 4800 | |
| 最大卸载高度Maximum unloading height | mm | 3500 | |
| 最大卸载距离Maximum unloading distance | mm | 1106 | |
| 额定装载质量Rated loading quality | kg | ≤2000kg | |
| 动臂提升时间Arm lift time | s | 3.5 | |
| 动臂下降时间Boom down time | s | 2.5 | |
| 三项和时间Triathlons and time | s | 7 | |
| 发动机Engine | |||
| 型号Model number | YUNNEI | YN37GBZ | |
| 额定功率Rated power | KW | 76KW/2400r/min | |
| 最大流量Maximum flow | m/r | 63 | |
| 工作压力Working pressure | mpa | 16-21 | |

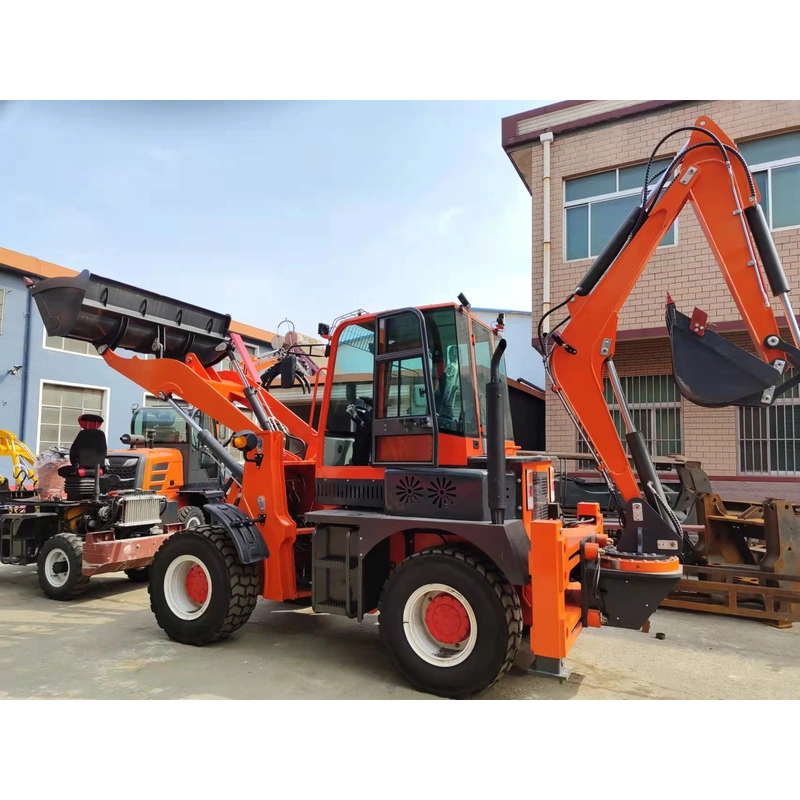

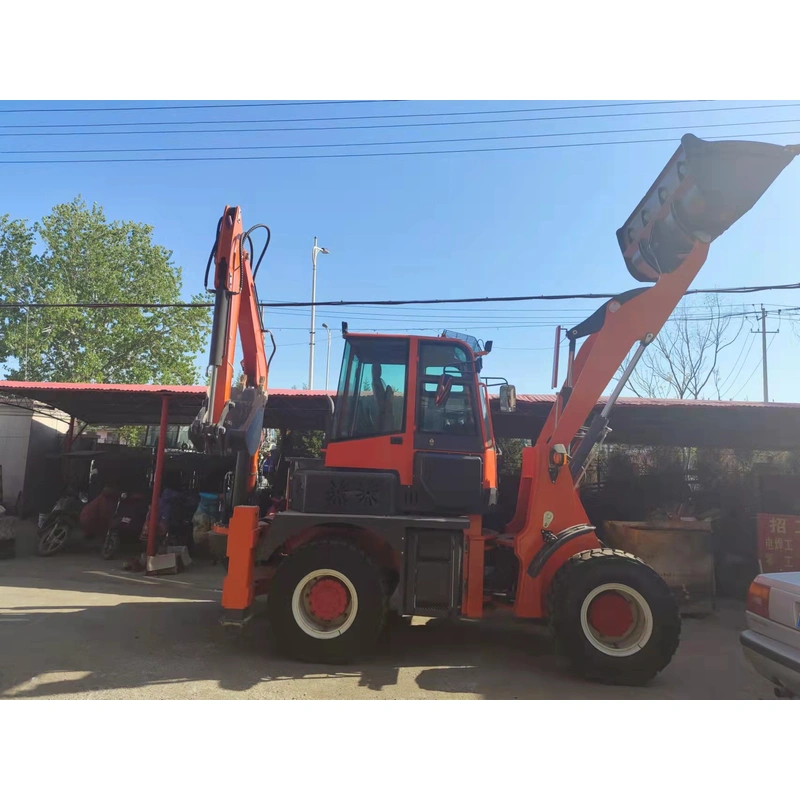

| 挖掘装载机Backhoe loader | YTWZ50-36 | ||
| 外形声尺寸Contour dimension | 车身长*高*车宽Length * Height * Width | 5700*3060*2150mm | |
| 整机质量 Overall quality | 7050kg | ||
| 档位Gear position | 四进四退4F+4R | ||
| 行驶速度Travelling speed | 38km/h | ||
| 轮胎Tires | 16/70-20半钢丝胎 | ||
| 最小离地距离Minimum ground distance | 310mm | ||
| 轴距Wheelbase | 2500mm | ||
| 轮距Wheel Pitch | 2050mm | ||

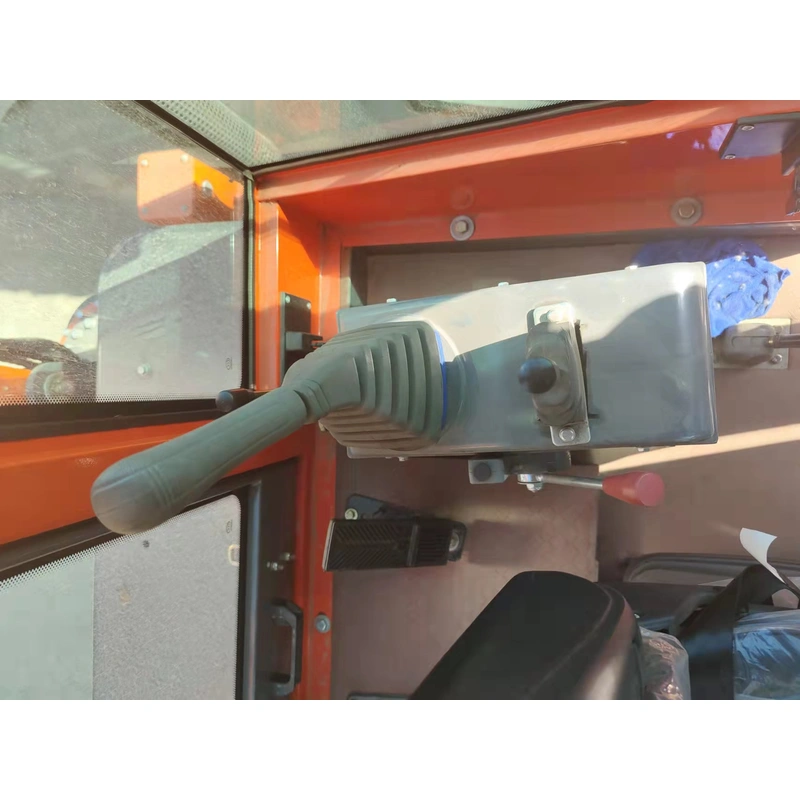

| 豪华款加大驾驶室/可调式旋转座椅/全液压先导式操作手柄/双向驾驶系统Deluxe extended cab / Adjustable Swivel seat / fully hydraulic pilot operated handle / two-way driving system | |||
| 可调仪表工作台Adjustable instrument table | 驾驶室前翻液压泵 Cab forward hydraulic pump | 固定支撑腿液压锁Hydraulic lock for fixed support leg | |
| 电子手油门Electronic hand throttle | 驾驶室具有液压前翻功能，方便保养维护 The CAB has the function of hydraulic forward turnover, which is convenient for maintenance | ||
| 倒车影像Reversing image | 自带冷暖空调With its own heating and cooling | ||
