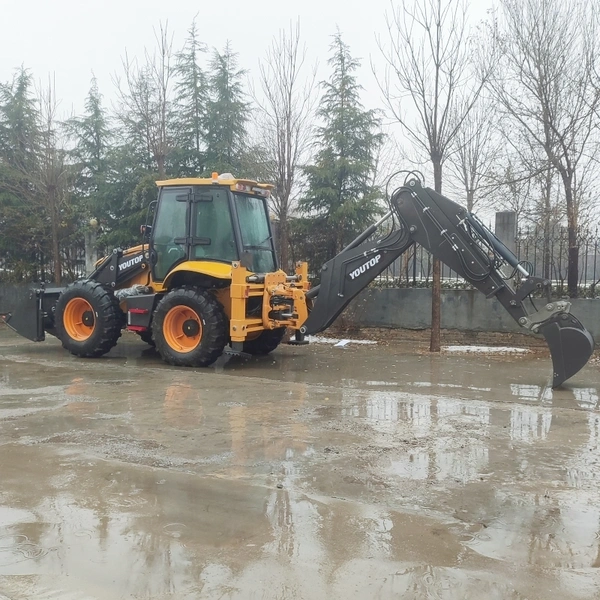

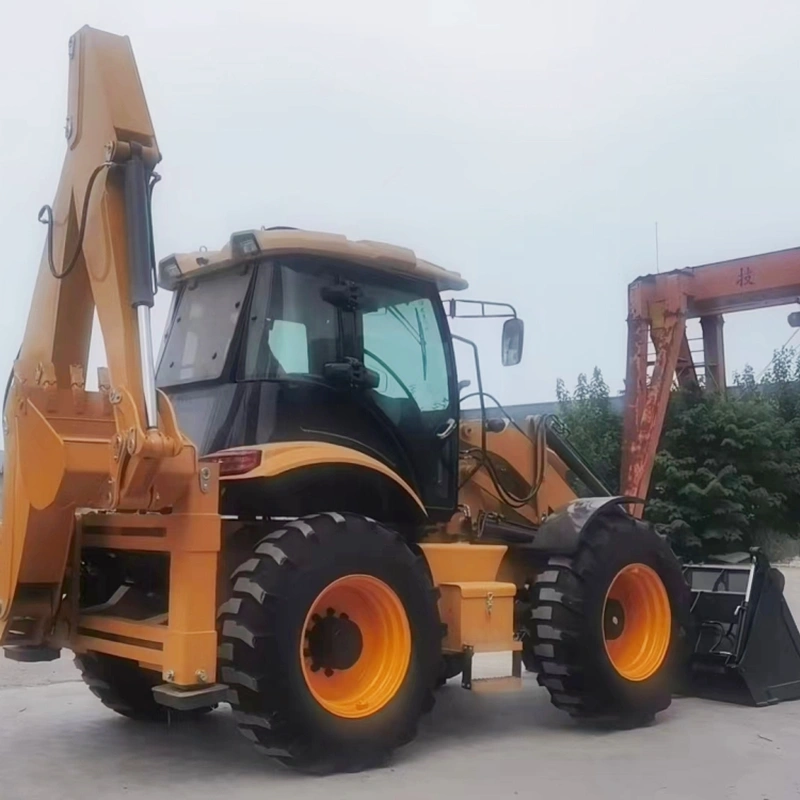

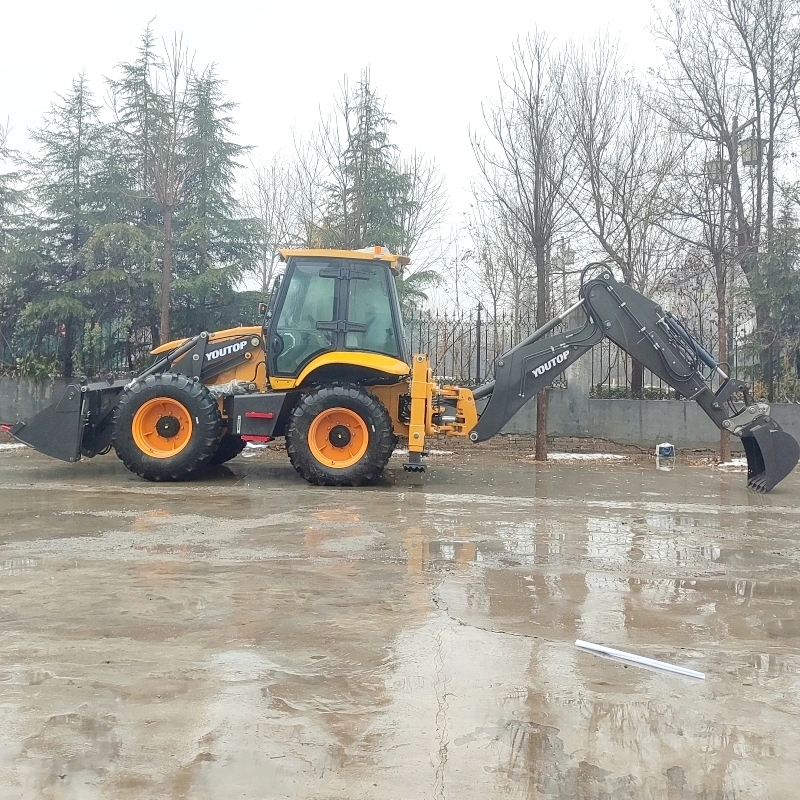

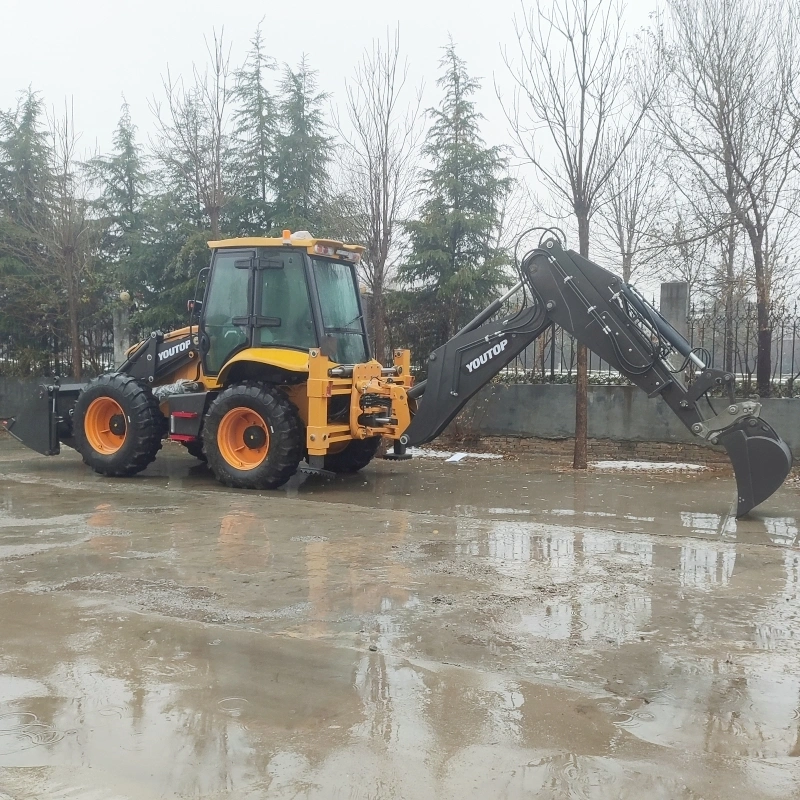

YT388D Specifications | ||
1 | Total length(bucket at ground) | 6450±80mm |
2 | Total width | 2350±20mm |
3 | Bucket width | 2620mm |
4 | Total height (cabin top) | 3120±10mm |
5 | Total height (digging boom top) | 3940 ±20mm |
6 | Wheel base | 2335±10 mm |
7 | Wheel tread | 2139 ±10mm |
1 | Rated load | 2800KG |
2 | Operating weight | 9300kg |
3 | Rated bucket capacity | 1.4m³ |
4 | Max. Dumping height (41o dumping angle) | 2850±50 mm |
5 | Dumping distance | 870±20 mm |
6 | Turning radius(Tires outside) | 5750±50mm |
Specs of excavator | ||
1 | Rated digging bucket capacity | 0.4m³ |
2 | Max. Digging depth | 3820±20 mm |
3 | Max. Digging radius | 5345±20mm |
4 | Max. Loading height | 3740±20mm |
5 | Max. Digging force | 5100kgf |
6 | Max.Digging height | 5470 ±20mm |
7 | Lifting force at Max. Digging radius | 1220kg |
Engine | ||
1 | Engine model | Yuchai |
2 | Cooling type | Water cooling |
3 | Rated power | 85(kW) |
5 | Rated speed | 2200(r/min) |
6 | Max. Torque | 400(N.M) |
