| SHANDONG YOUTOP MACHINERY CO., LTD |
| FOB to qingdao price is USD14800 per set |
| Tel: 008613156466618 |

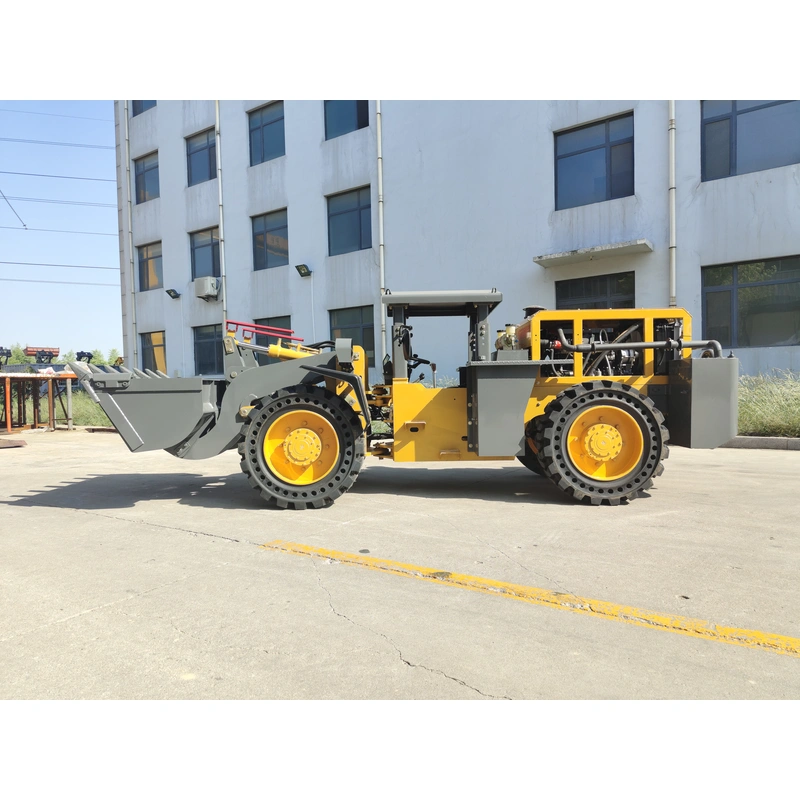

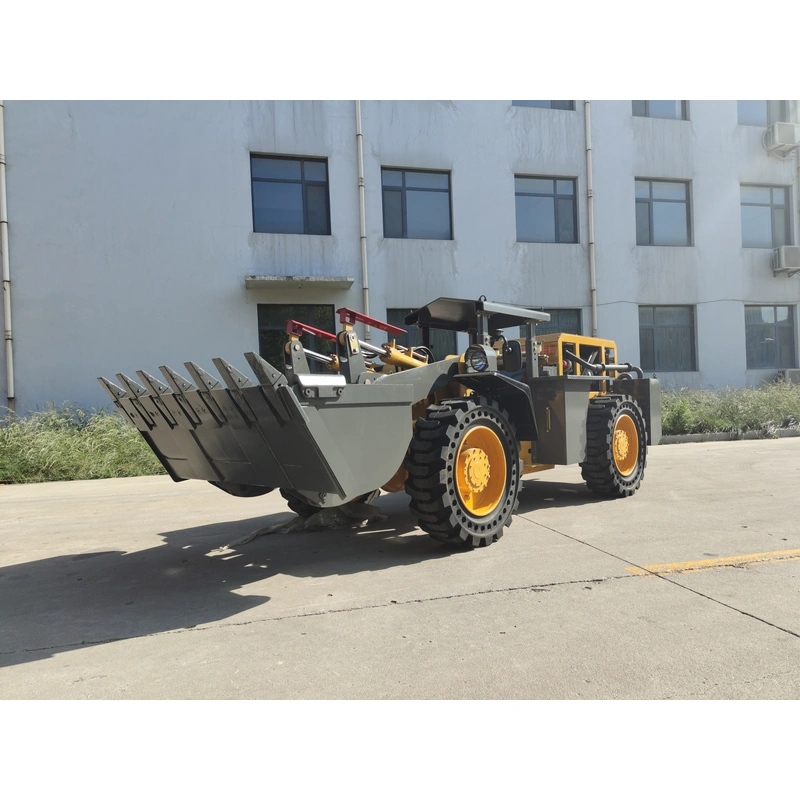

| Specification of YT-UG928 underground wheel loader |
| Performance | Rated load | 2000kg |
| Overall weight | 5800kg |
| Rated bucket capacity | 1m3 |
| Maximum tractive force | 90KN |
| Maximum breakout force | ≥115KN |
| Maximum grade ability | 30℃ |
| Maximum dump height | 1700mm |
| Maximum dump reach | 1000m |
| Overall dimension (L×W×H) | 5540×1800×1890mm |
| Minimum turning radius | 5400mm |
| Engine | Model | YCD4J22T-115 |
| Type | In-line arrangement, water cooling, four-stroke |
| No. of cylinder-bore/stroke | 4-102×115mm |
| Rated power | 85kw--2800r/min |
| Maximum torque | 310N.m |
| Min fuel-consume ratio | ≤223g/kw.h |
| Transmission system | Torque converter | 280 |
| Gearbox mode | Power shift normally engaged straight gear |
| Gear shift | 2 forward shift 2reverse shift |
| Maximum speed | 30km/h |
| Drive axles | axle | undergroud big hub reduction axle |
| Main reducing spiral | bevel gear grade 1reduction |
| Decelerating mode | planetary reduction,grade 1 |
| Wheel base (mm) | 2450mm |
| Wheel tread | 1590mm |
| Minimum ground clearance | 350mm |
| hydraulic system | System working pressure | 16MPa |
| bucket lifting time | ≤3.25s |
| bucket falling time | ≤2.3s |
| total time for a signle working cycle | ≤6.5 |
| Function of leveling automatically | yes |
| Brake system | Service brake | air over hydraulic disc brake on 4 wheels |
| Parking brake | manual parking brake |
| Tyre | Type specification | 15/70-18 |
| Front tyre pressure | 0.4Mpa |
| Rear tyre pressure | 0.35Mpa |
| optional | 1000-20 Smooth surface anti puncture tire | $650 |
| Anti-skid chains | $1,000 |
| Side Dumping Bucke | $1,100 |
| Note: |
| 1 Package: Nude package, one set in 20GP container, two sets in 40HQ container |
| 2 Payment:30%TT as deposit, 70%TT before shipped |
| 3.Delivery time:20-30 days atfer confirm the deposit |
| 4.Price validity time: 15 days |
