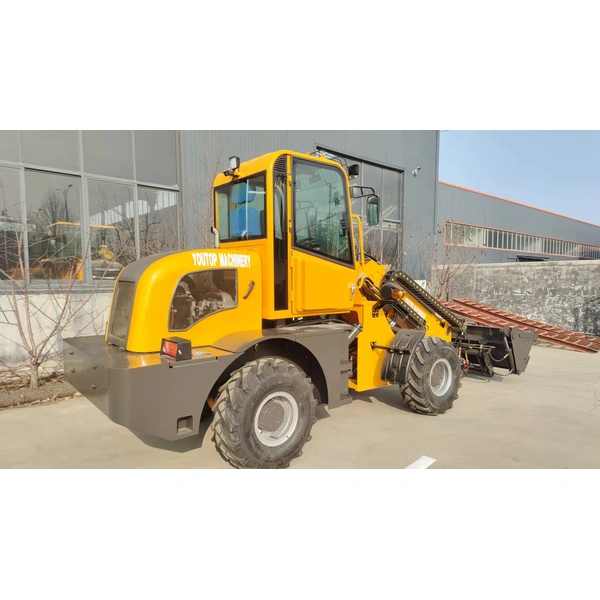

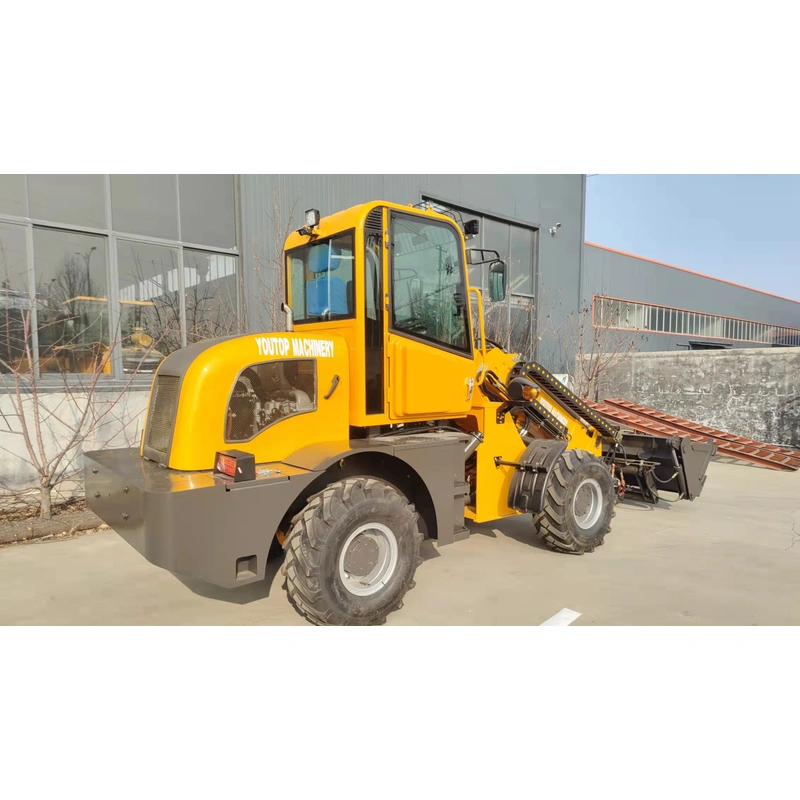

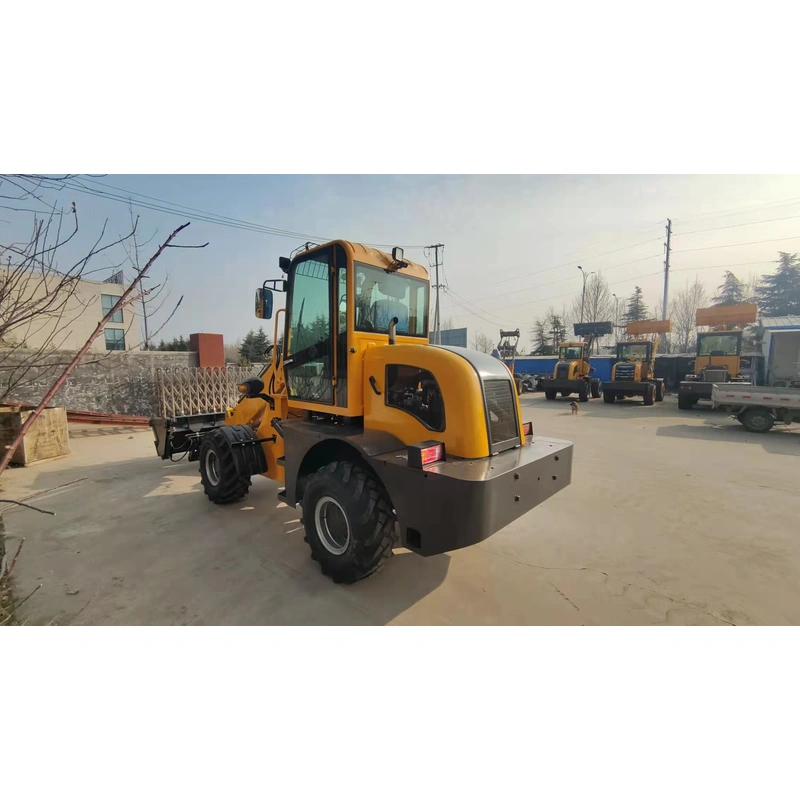

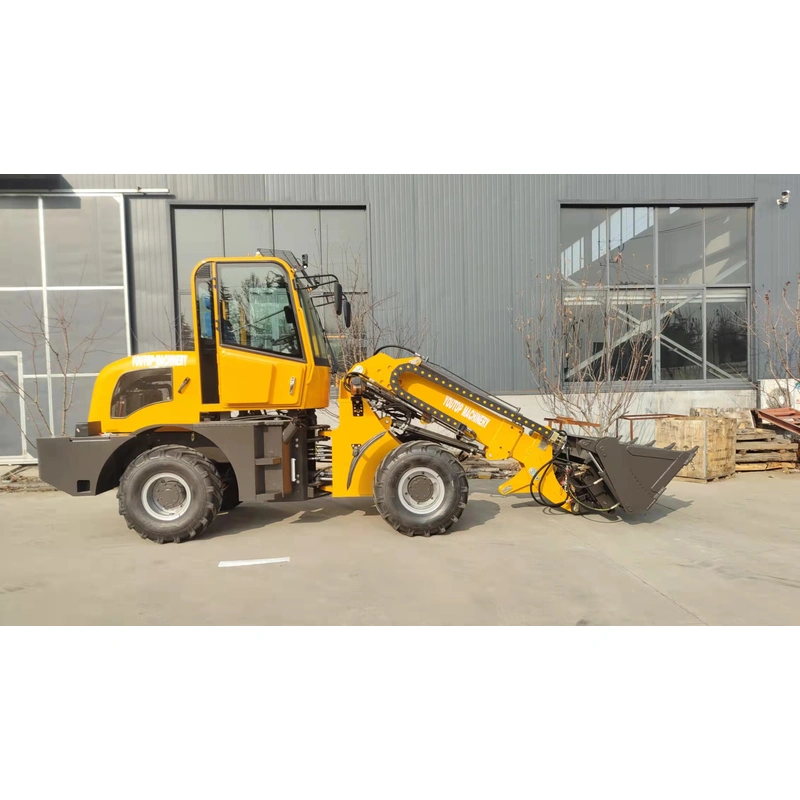

TL1800 telescopic loader伸缩臂装载机 | |
1.0 Engine发动机 | |
(1) Brand/Model: 品牌/型号 | Yunnei YN27GBZ 云内 |
(2) Type:类型 | In-line arrangement, water-cooled, four cylinder, diesel engine 直列,水冷,四缸,柴油发动机 |
(3) Rated Power:额定功率 | 58KW |
2.0 Overall Dimensions | |
(1) Overall Length:长度 | 5800mm |
(2) Overall Width:宽度 | 1900mm |
(3) Overall Height:高度 | 2680mm |
(4) Bucket hinge pin Height:铲斗铰接销轴高度 | 4400mm
|
(5)Bucket Max.lift height 铲斗最大举升高度 | 4800mm |
(7) Bucket Max.unloading height 铲斗最大卸载高度 | 3700mm |
3.0 Transmission System：传动系统 Gearbox+Hydraulic converter + Drive shaft + HUB axle(Disc brake) 变速箱+液压变矩器+传动轴+轮边桥 | |
4.0 Bucket：铲斗 | |
(1) Capacity: 容量 | 0.75 m³ |
(2) Type:类型 | Heavy-duty bolt on teeth重型铲齿 |
(3) Max. Load:最大载重 | 1800kg including bucket or attachment 包含铲斗或者辅具 |
5.0 Operating Specifications | |
(1) Steering System: 转向系统 | Articulated hydraulic steering 铰接式液压转向 |
(2) Driving System: 驱动方式 | Four wheel drive四轮驱动 |
(3) Hydraulic quick release 液压快换 | Yes 是的 |

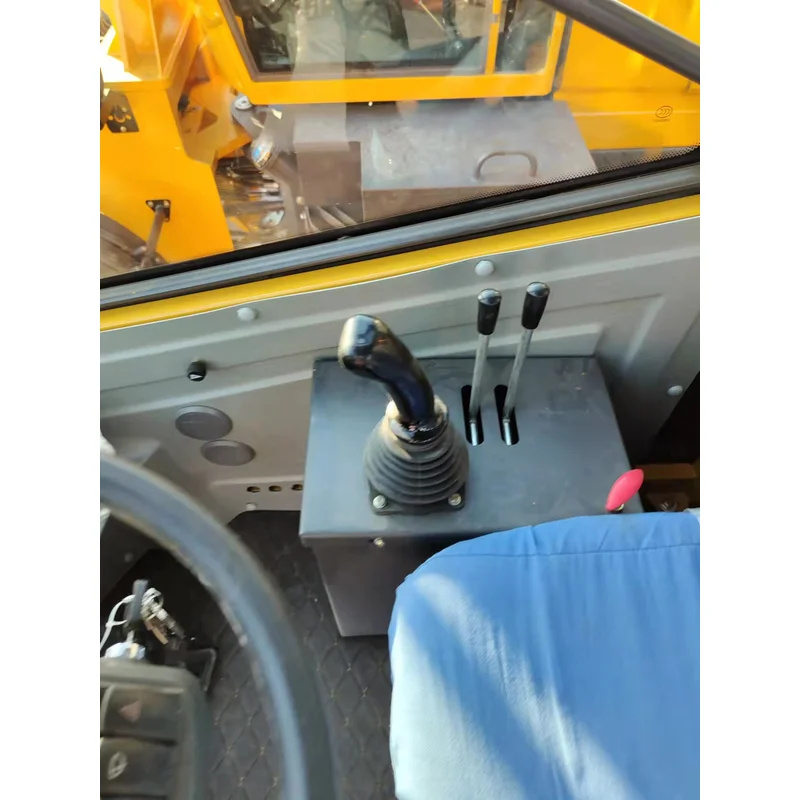

(4) Mechanical pilot joystick 机械先导 | Yes 是的 |
(5) Steady rise平稳上升 | Yes 是的 |
6.0 Brake System 刹车系统 | |
(1) Service Brake:脚刹 | Four wheel disc brake 四轮碟刹 |
(2) Parking Brake:手刹 | Disc brake 碟刹 |
7.0 Tyre 轮胎 | |
(1) Model:型号 | 23.5/70-16 |
(2) Size:尺寸 | 宽度Width: 330mm 直径Diameter: 920mm |
8.0 Wheel base: 轴距 2500mm | |
9.0 Track: 轮距 1550mm | |
10. System pressure: 系统压力 | 16Mpa |
11. Weight:重量 | 4500KG |
